Sehr geehrter Herr Hörmann


Welcome to the KLOTZ AIS April Newsletter!
Just in time for the start of spring, we have again put together a selection of new, live-ready products from our cable manufactory for you.

But first we celebrate a new addition to the #KLOTZfamily in the form of Hamburg artist Debby Smith. Debby has been passionate about music since a young age and has since developed her skills into a versatile artist with a unique sound. With several successful singles and EPs to her name, Debby Smith is well on her way to becoming a force to be reckoned with in the music industry.

With the RC6AEE RamCAT6A we present a live-ready mobile cable with etherCON connectors. Ideal for demanding use "on the road", this robust network cable allows high data rates to be realised without interference, even over long distances.

Especially in a live or stage environment, reliable transmission of digital audio and lighting control signals under all circumstances is crucial. Our PD7 Pro Digital cable is a professional solution for the secure transmission of DMX and AES/EBU signals.

With new safety standards in building technology, it is essential that installation cables also meet the standards for building, planning and ordinance directives (CPR). The KLOTZ OmniTrans OT234H-D installation cable complies with fire protection class DCA and, thanks to its generous conductor cross-section, is ideal for transmitting analogue and digital audio signals as well as DMX control signals even over long distances.




With kind regards
KLOTZ AIS - the signal masters

KLOTZfamily
Debby Smith - welcome to the #KLOTZfamily


Not too many musicians in todays market manage to breathe so much fresh air into the pop genre and at the same time sound as familiar as Debby Smith. The Hamburg-based singer arranges her grandiose voice with pop elements of the '80s and '90s, but modern influences get their share as well.

Debby has been passionately devoted to music in all its facets since the age of 6. At the age of twelve she already began to write her own songs. One of her great idols at that time was Alicia Keys and so Debby regularly took piano lessons, which she paid for herself at an early age. After graduating from high school, she studied at the Hochschule für Musik in Hamburg.

Since then, her songs have been characterised by lyrics that reflect an honest examination of modern, cultural issues and inspired arrangements of pop, R'nB, soul and hip hop.

On her current EP "Piece of Mind", she proves how diverse pop can be in the year 2023, but always remains musically true to herself.

Even brand new music is already in the starting blocks. The new single "Low Key" already gives a foretaste of the debut album, which will be released later this year. So - stay tuned.

We are proud to welcome Debby Smith as a new KLOTZ artist.

KLOTZ CAT network

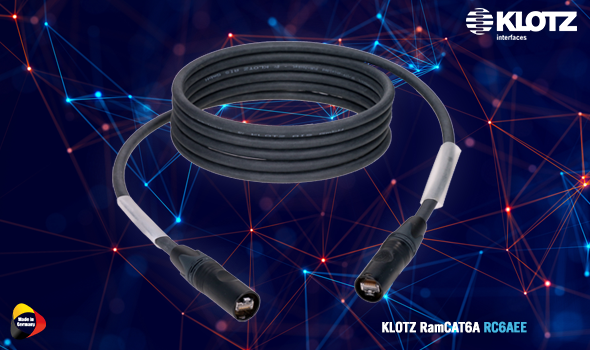

KLOTZ RamCAT6A cable with etherCON CAT6a connectors - RC6AEE..


The RC6A-SB1X RamCAT6A cable for mobile data transmission is designed for a frequency of 500 MHz and data transmission rates of up to 10 Gbit/s over up to 100 m link length.

This robust data cable with a characteristic impedance of 100 ohms has four stranded pairs with low-attenuation AWG 23/1 solid conductors. Matched lay lengths of individual pairs and sophisticated overall stranding with the aid of a PE stranding element ensure extremely low NEXT (near) and FEXT (far) crosstalk values. The double shielding (SF/UTP) reliably keeps electromagnetic interference at bay. The cross-shaped PE stranding element as well as a stabilizing intermediate jacket and the abrasion-resistant PUR outer jacket give this cable excellent touring grade properties for mobile use "on the road".

Ideal for Ethernet applications 1000Base-T and 10GBase-T with robust etherCON CAT6a connectors from Neutrik.

RC6AEE premade cables are available as single cable or on cable drum.


KLOTZ PD7 Pro Digital
PD7 Pro Digital cable - high quality low loss AES & DMX cable with a conductor cross section of 0.34 mm²


KLOTZ now supplies the new PD7 Pro Digital series with the high-quality OT234YS low loss cable for AES/EBU and DMX signals. The connectors available are either the XLR 3p. and XLR 5p. plugs by KLOTZ or Neutrik®. The double shielded OT234YS has a massive conductor cross-section of 0.34 mm² (AWG 22/7) and is ideal for professional applications thanks to the durable PVC jacket.

The robust and yet very flexible cable has a particularly low signal attenuation, which is due not least to the generous conductor cross-section and the low capacitance. This makes it suitable for long distances and transmits both digital signals such as AES/EBU and DMX, as well as analog microphone and line audio signals easily and stably. Two shields protect against noise. Once the Al-PET foil, and additionally a very dense copper braiding with a coverage of 85%.

The black PVC jacket with an outer diameter of 6.7 mm is suitable for a temperature range of -20°C to +70°C and gives the cable a pleasant flexibility despite the solid conductor cross-section and the double shielding. Both cable ends are also equipped with transparent heat-shrink sleeves for free labeling. The PD7 Pro Digital cables are available in lengths from 1 m to 50 m - as always, "Made in Germany" with the 6-fold KLOTZ quality control according to ISO 9001:2015.


KLOTZ OmniTrans FRNC
KLOTZ OT234H-D - high quality digital cable for long distances with FRNC jacket according to CPR class Dca


Our bestseller, the OT234H digital cable for extremely long transmission distances with FRNC jacket, has been known and proven for years in the installation sector. The new OT234H-D cable now also fulfills the CPR class Dca - s1, d1, a1 according to EN50575 for the installation area.

The very robust yet flexible cable has a particularly low signal attenuation, which is due not least to the generous conductor cross-section of 0.34 mm² (AWG 22/7) and the low capacitance. This makes it suitable for extremely long distances and transmits both analog microphone and line audio signals, as well as digital signals such as AES/EBU and DMX control commands, smoothly and stably. Two shields protect against noise. Once the Al-PET foil, and additionally a very dense copper braid with a coverage of 85%. A tinned copper braid facilitates the assembly with connectors.

The robust FRNC jacket with an outer diameter of 5.8 mm is suitable for a temperature range of -30°C to +70°C and still gives the cable a pleasant flexibility despite the massive conductor cross-section and the double shielding. With a minimum bending radius of only 35 mm, the OT234H-D is perfectly suited for fixed installations.

The following certificates are fulfilled by the digital OT234H-D installation cable:

-Flame retardancy according to IEC 60332-1-2
-Halogen-free according to IEC 60754-2
-Low smoke emission according to CPR class S1
